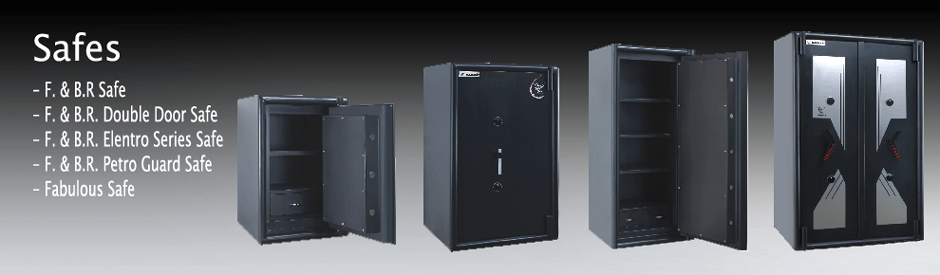

auro's Safes
        AURO security equipments are designed to IS specification standards and tailor - made to suit the needs of establishments : Banks,Industrail and commercial Business Organizations,Hotels,Petrols Pumps ,Jewellery Show room etc.
        AURO's Safe are certified by the Central Buliding Reserch Institute (CBRI) Roorkee after carring out successful test against Fire,Burglary impact and Oxyacetylene attck as per latest IS : 550 (1991)
        AURO offers safes in size 26'' to 81'' to cater to the requirement of shoppers to Banks and ensure safely and secuirty of your valuables.
31




 41
49



61


61DD


Deposit Safe
Specification
 Models Double
  26'' 31'' 41'' 49'' 61'' 81'' 61'' DD 71'' DD
Outside Height
H 670 790 1050 1250 1550 2050 1550 1800
Width
W 540 635 635 785 785 950 1090 1160
Depth
D 570 665 665 730 730 915 730 840
Inside Height
h 470 590 850 1050 1350 1850 1350 1600
Width
 w 340 435 435 585 585 750 890 960
Depth
 d 290 385 385 440 440 585 440 510
Internal Cubic Capacity-m3
  0.05 0.01 0.142 0.27 0.35 0.811 0.530 0.783
Door Swing (s)
S 410 505 505 655 655 830 500 535
Overall Depth With Door 90'
O.D 950 1150 1150 1365 1365 1725 1210 1355
Overall Depth With Door 180'
O.D 870 1060 1060 1360 1360 1710 1935 2075
Overall Thickness
O.T 150 150 150 150 150 155 150 155
Projection Of Body From Door
P 30 30 30 30 30 30 30 30
Weight ( without Packing )
Kg. 415 630 800 1130 1150 2650 1700 2100
Floor Loading - Kg./m2
  1450 1550 1900 2100 2550 3050 2250 2350
FITTINGS

Shelves Adjustable/Removable Only
  one one Two Two Three Four Three Four
Drawers/Lockers
   one one one Two Two Three Three Three
Dual Control Locks/Shooting Bolt
  1/6 1/6 1/8 2/8 2/10 2/12 3/18 3/18
Tolelance Dimentions:+/-
  +/-25 +/- 25 +/- 25 +/- 30 +/- 30 +/-40 +/- 40 +/-40

Our policy is one of continues development and improvement.We therefore reserve the right to alter any part of the dimensions and specification without prior notice or obligation.
All dimensions are in mm and approximate.
Note:All Weight are subject to +/- 3% variation.


BIS Standards and Auro Safe Availability:
Class
Classification Code
'C'
TL 30DTL 10x5 FR.30
'B'
TRTL 15(D)TL 15x5
'BB'
TRTL 15x6
'A'
TRTL 30x6
'TL'
Tool Resistant
'TRTL'
Torch & Tool Resistant
'FR'
Fire Resistant
